Standard and scope
Standard, product family and subcategory can be checked before inquiry.
Air Pipe Joint (CB/T3594-94) is designed to CB/T 3594-94 with flanged ends. nominal size is DN50-350; suitable media are Top of oil-tank and water-tank air pipes. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
Air Pipe Joint (CB/T3594-94) is designed to CB/T 3594-94 with flanged ends. nominal size is DN50-350; suitable media are Top of oil-tank and water-tank air pipes. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

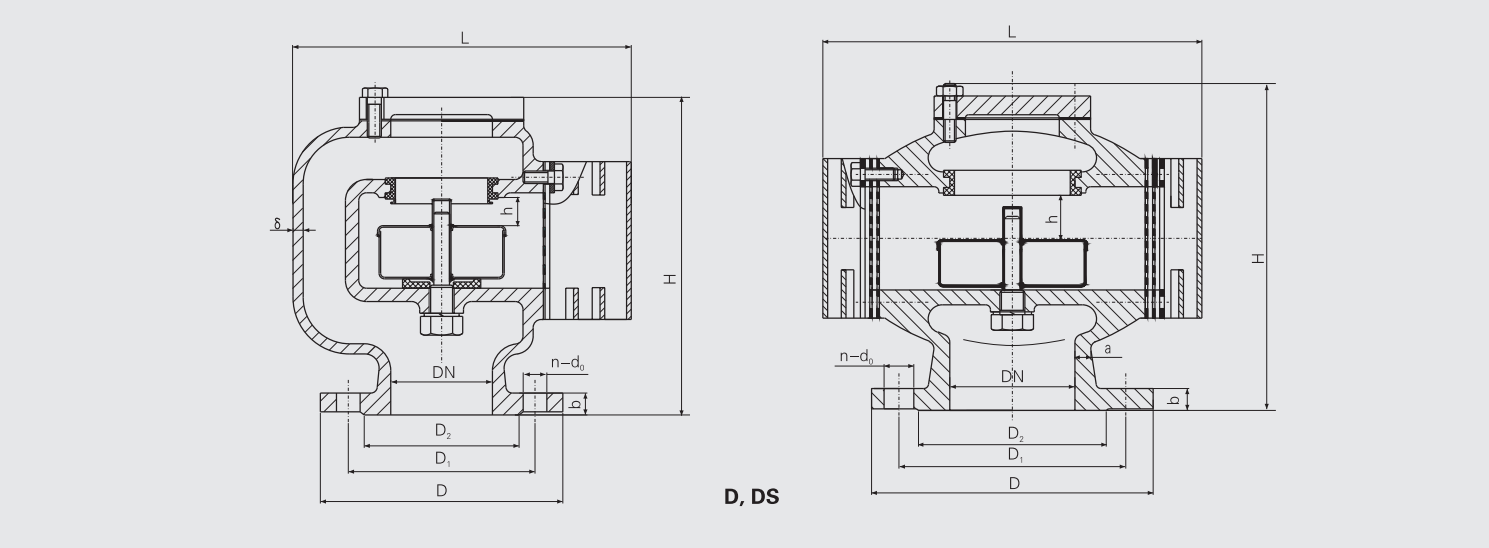

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | Air Pipe Joint |
| Design standard | CB/T 3594-94 |
| Body type | Type L |
| Body material | Gray cast iron (HT200) |
| End connection | Flanged |
| Item | Specification |
|---|---|
| Nominal size | DN50-350 |
| Suitable media | Top of oil-tank and water-tank air pipes |
| Part | Material |
|---|---|
| 本体, 盖 | Gray cast iron (HT200) |
| 浮筒 | Stainless steel (304) |
Confirm working-pressure variation and sealing requirements for air service.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
