Standard and scope
Standard, product family and subcategory can be checked before inquiry.

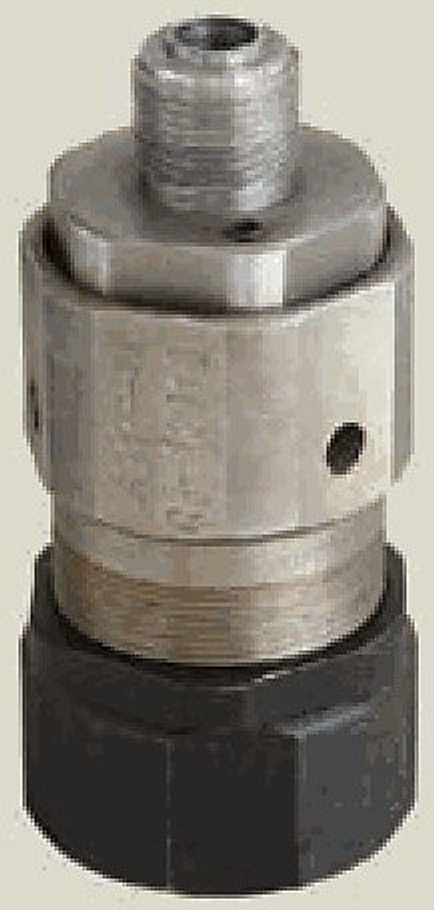

Male Thread Air Signal Safety Valve (CB3022-94) is designed to CB3022-94 with male thread ends. nominal size is DN15 / 20 / 25; set / adjusted pressure range is DN15: 0.1-3.5 MPa; DN20: 0.1-2.2 MPa; DN25: 0.1-2.0 MPa; suitable media are Air. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
Male Thread Air Signal Safety Valve (CB3022-94) is designed to CB3022-94 with male thread ends. nominal size is DN15 / 20 / 25; set / adjusted pressure range is DN15: 0.1-3.5 MPa; DN20: 0.1-2.2 MPa; DN25: 0.1-2.0 MPa; suitable media are Air. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

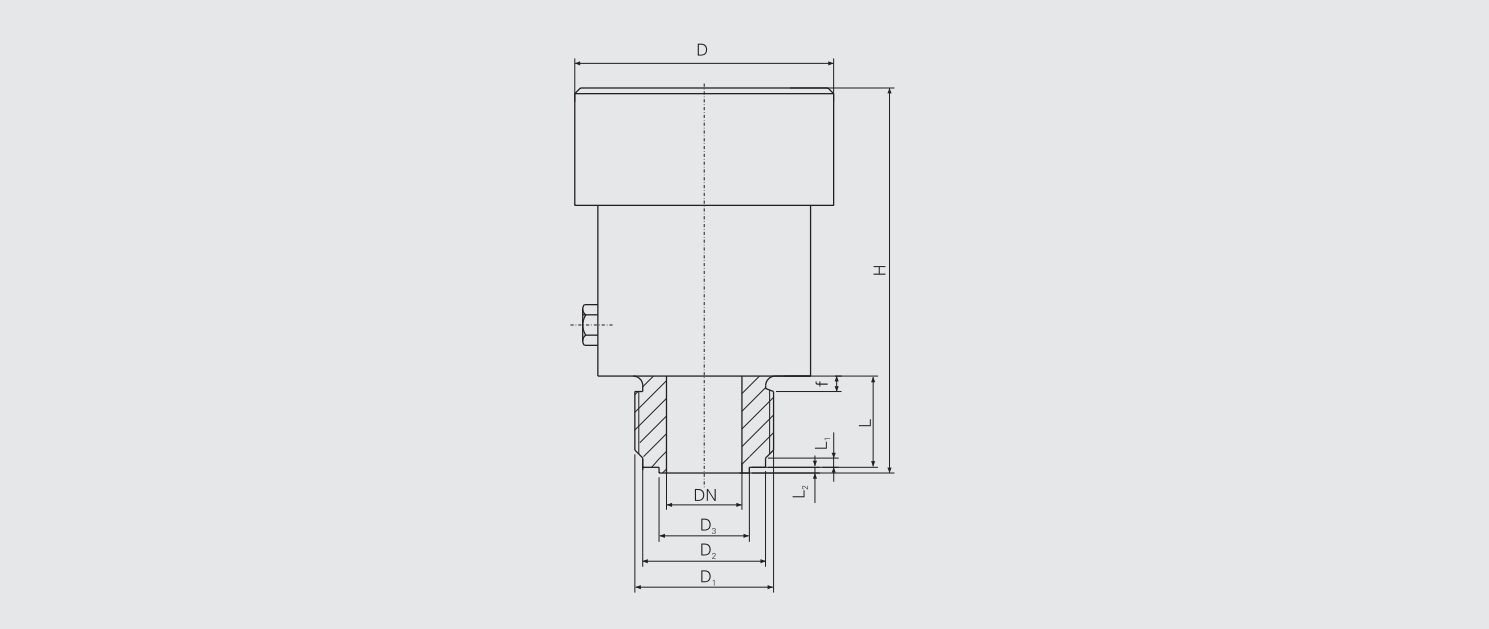

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | Male Thread Air Signal Safety Valve |
| Design standard | CB3022-94 |
| End connection | Male thread |
| Item | Specification |
|---|---|
| Set / adjusted pressure range | DN15: 0.1-3.5 MPa; DN20: 0.1-2.2 MPa; DN25: 0.1-2.0 MPa |
| Nominal size | DN15 / 20 / 25 |
| Suitable media | Air |
Confirm working-pressure variation and sealing requirements for air service.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
