Standard and scope
Standard, product family and subcategory can be checked before inquiry.

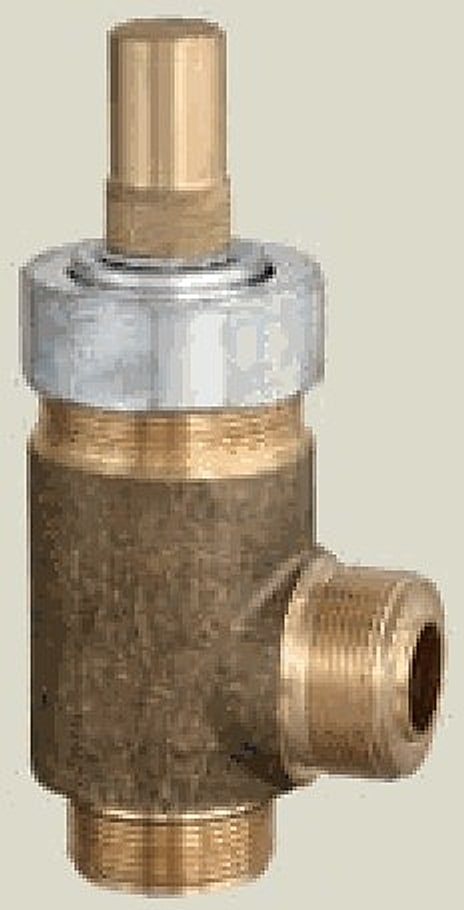

Bronze Male Thread Angle Of Steam Safety Valve (CB3192-83) is designed to CB3192-83 with male thread ends. nominal throat diameter is DN10 / 15; set / adjusted pressure range is 0.1-0.25 / >0.25-0.6 / >0.6-1.2 MPa; suitable media are steam. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
Bronze Male Thread Angle Of Steam Safety Valve (CB3192-83) is designed to CB3192-83 with male thread ends. nominal throat diameter is DN10 / 15; set / adjusted pressure range is 0.1-0.25 / >0.25-0.6 / >0.6-1.2 MPa; suitable media are steam. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

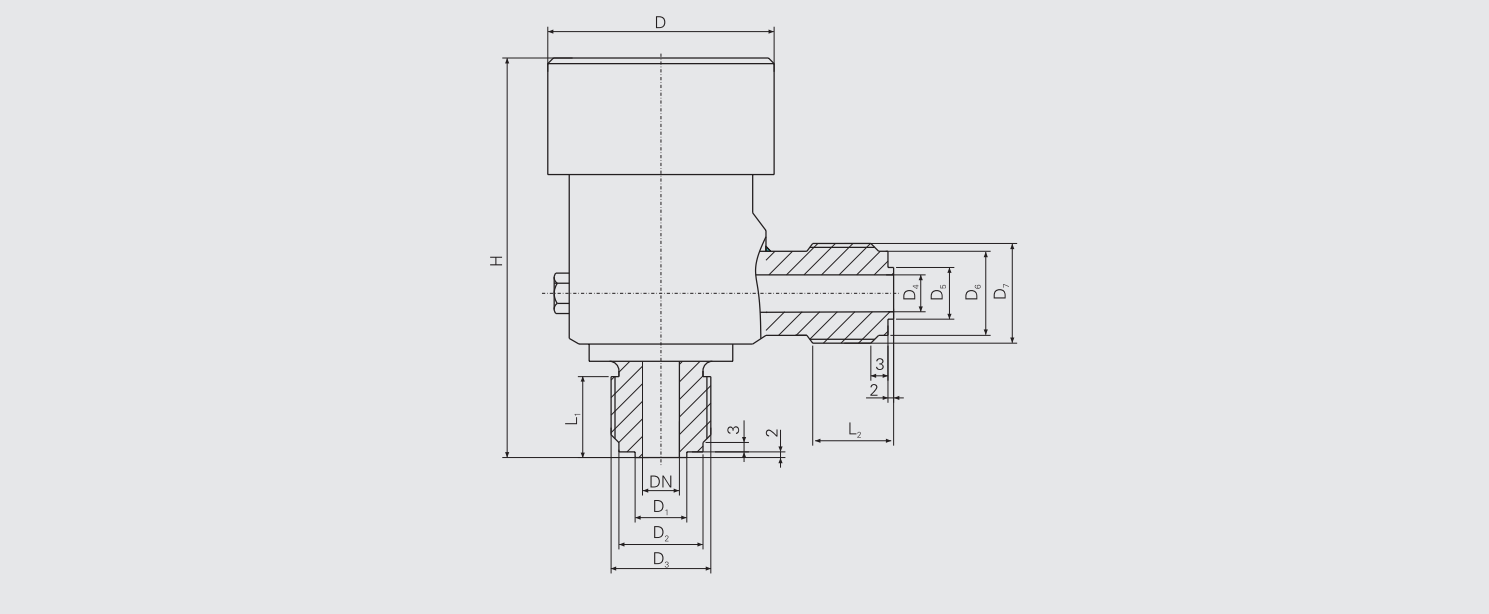

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | Bronze Male Thread Angle Of Steam Safety Valve |
| Design standard | CB3192-83 |
| Body material | Carbon steel (35) |
| End connection | Male thread |
| Item | Specification |
|---|---|
| Set / adjusted pressure range | 0.1-0.25 / >0.25-0.6 / >0.6-1.2 MPa |
| Nominal throat diameter | DN10 / 15 |
| Suitable media | steam |
| Part | Material |
|---|---|
| Seat, Disc | Stainless steel (2Cr13) |
| 调节环 | Manganese brass (HMn58-2) |
| Body | Carbon steel (35) |
| Spring | Spring steel (50CrVA) |
Steam service is checked against temperature limits and pressure class.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
