Standard and scope
Standard, product family and subcategory can be checked before inquiry.

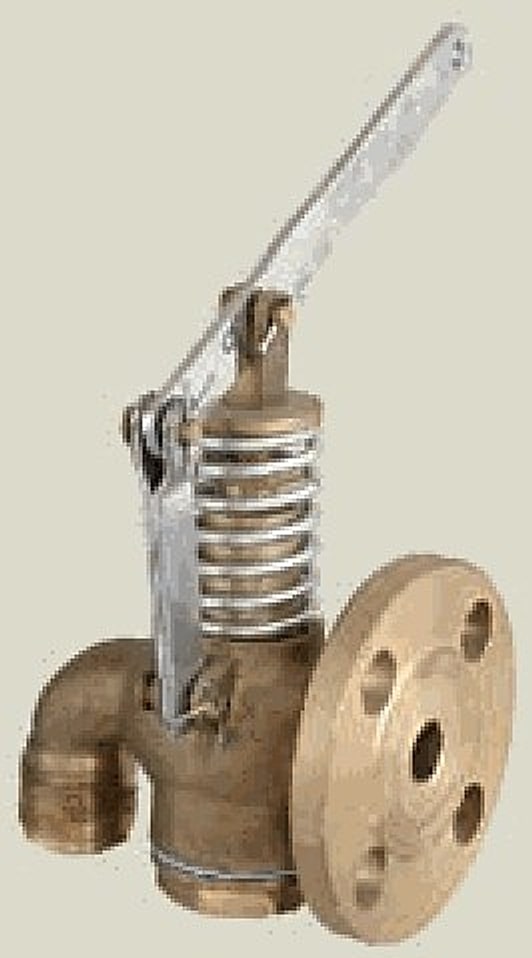

Self-Closing Draw-Off Valve (CBM1078-81) is designed to CBM1078-81 with flanged ends. nominal size is DN15/25/40/50; pressure rating is 0.1 MPa. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
Self-Closing Draw-Off Valve (CBM1078-81) is designed to CBM1078-81 with flanged ends. nominal size is DN15/25/40/50; pressure rating is 0.1 MPa. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

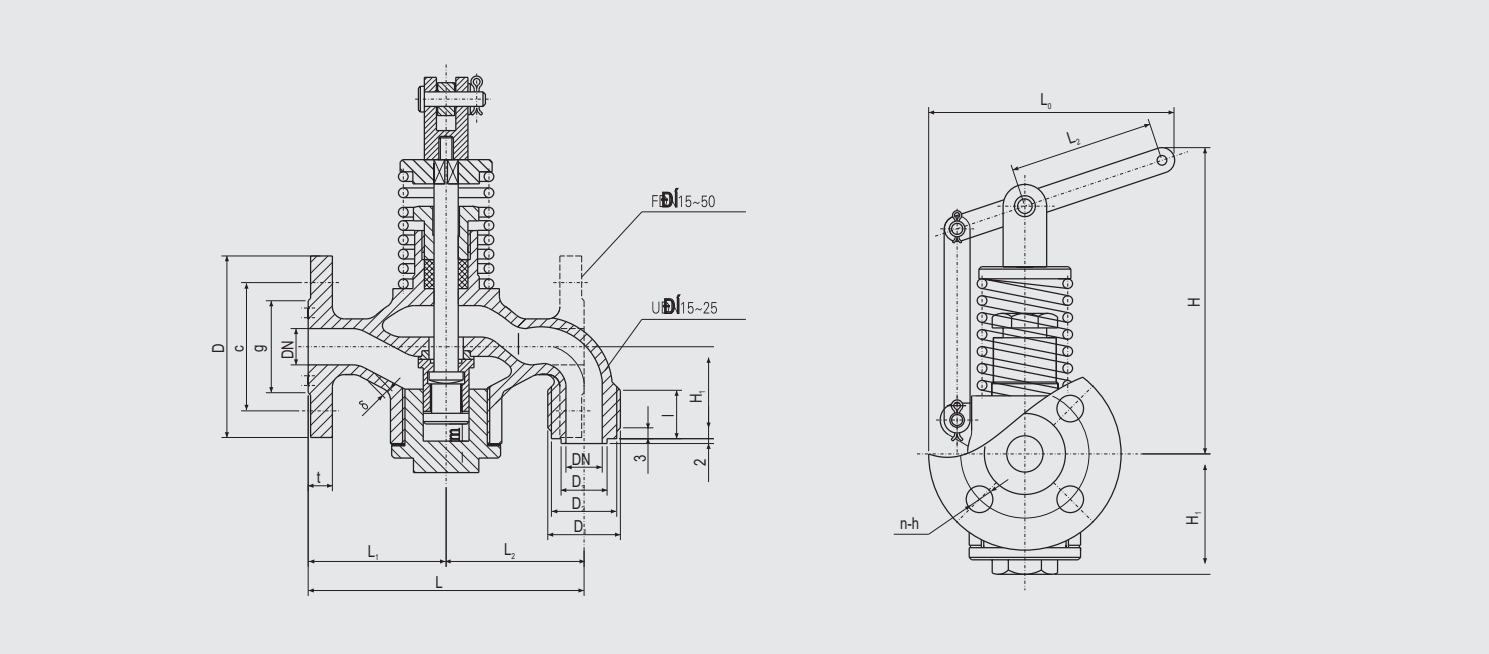

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | Self-Closing Draw-Off Valve |
| Design standard | CBM1078-81 |
| Body type | Straight-through type, elbow type |
| Body material | DN15: cast tin bronze (ZQSn10-2 II); DN25-50: cast steel (ZG25 II) |
| End connection | Flanged |
| Item | Specification |
|---|---|
| Nominal pressure | 0.1 MPa |
| Nominal size | DN15/25/40/50 |
| Part | Material |
|---|---|
| Body | DN15: cast tin bronze (ZQSn10-2 II); DN25-50: cast steel (ZG25 II) |
| Lower bonnet, Disc, Seat | Aluminum bronze (ZQA19-2 II) |
| Stem | Aluminum bronze (QA19-2) |
| Spring | Carbon spring steel, group II |
Send medium, temperature, pressure and installation position with your inquiry.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
