Standard and scope
Standard, product family and subcategory can be checked before inquiry.
Marine Bronze Hose Connection Valve (CBM1109-82) is designed to CBM1109-82 with flanged ends. nominal size is DN15-25; pressure rating is 1.0 MPa. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
Marine Bronze Hose Connection Valve (CBM1109-82) is designed to CBM1109-82 with flanged ends. nominal size is DN15-25; pressure rating is 1.0 MPa. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

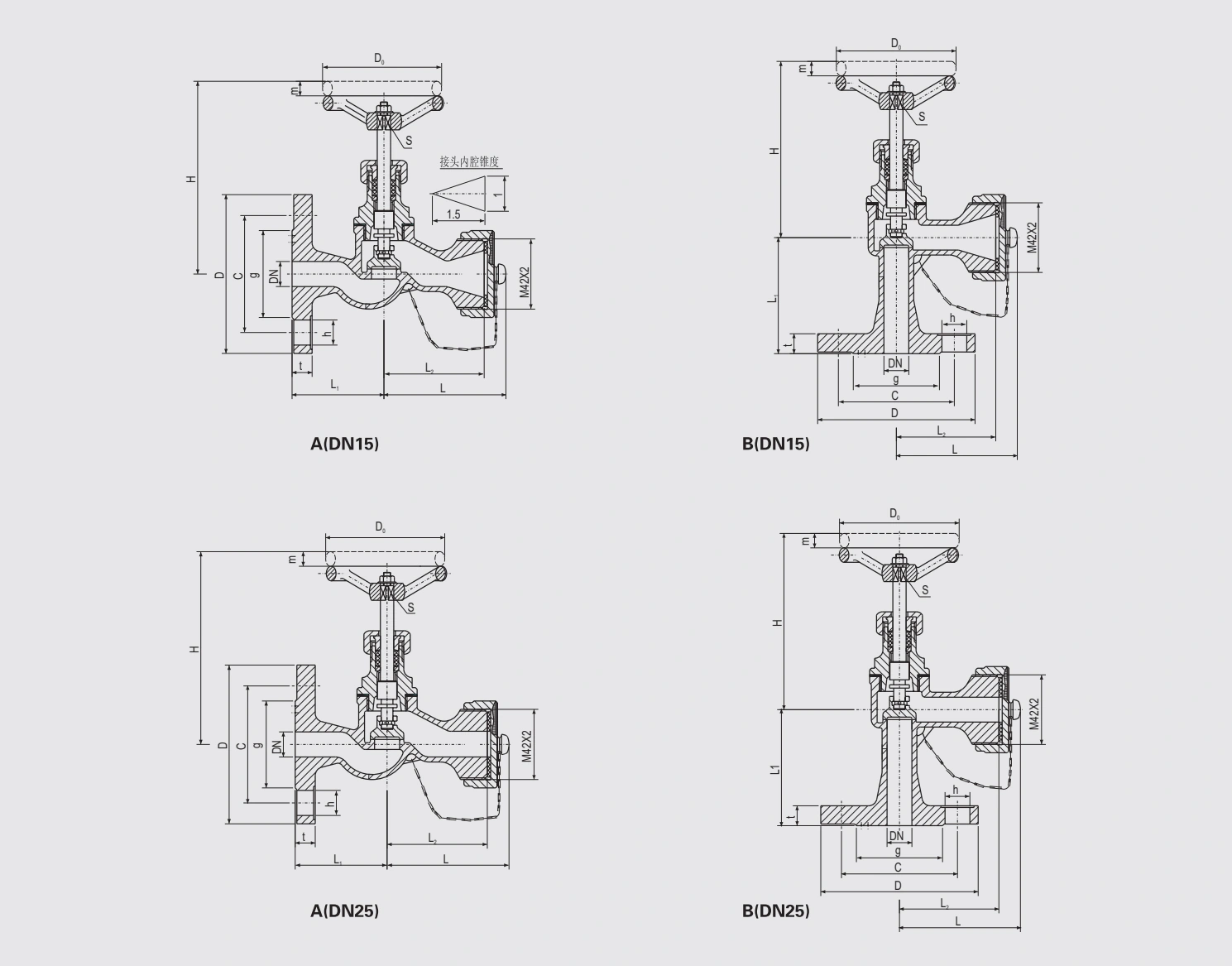

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | Marine Bronze Hose Connection Valve |
| Design standard | CBM1109-82 |
| Body type | Type A, Type B |
| Body material | Cast tin bronze (ZQSn10-2) |
| End connection | Flanged |
| Item | Specification |
|---|---|
| Nominal pressure | 1.0 MPa |
| Nominal size | DN15-25 |
| Part | Material |
|---|---|
| Body, Bonnet, Disc | Cast tin bronze (ZQSn10-2) |
| Stem | Aluminum bronze (QA19-2) |
Send medium, temperature, pressure and installation position with your inquiry.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
