Standard and scope
Standard, product family and subcategory can be checked before inquiry.

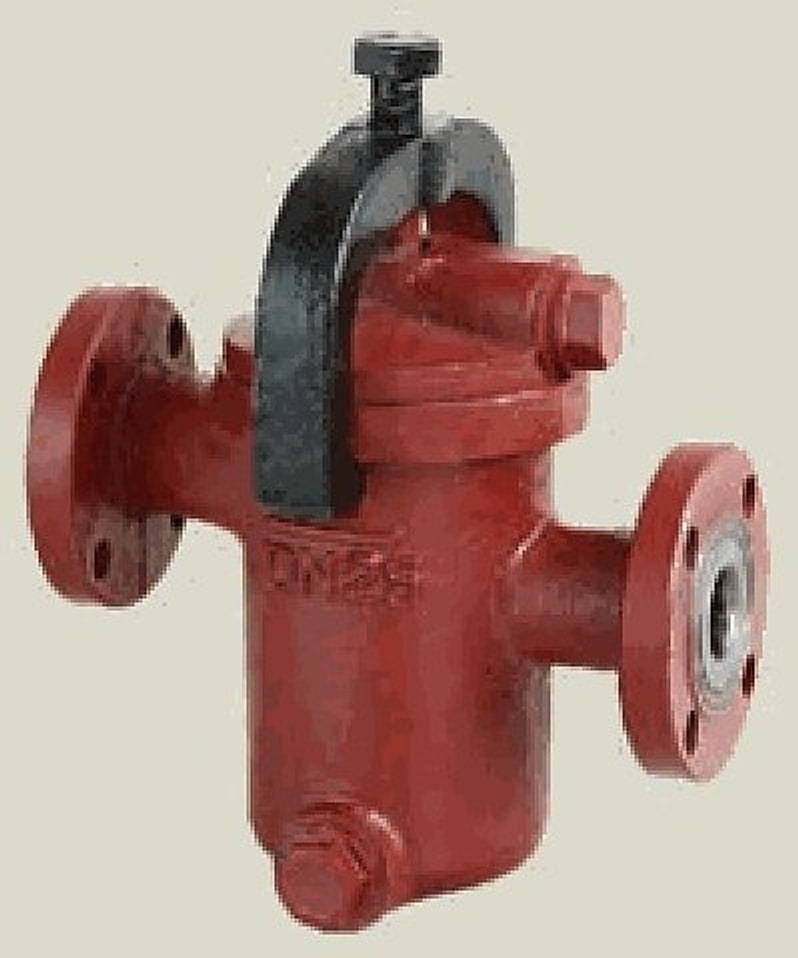

Single Oil Filter (CBM1133-82) is designed to CBM1133-82. nominal size is DN50-200; pressure rating is 0.5 MPa; suitable media are lubricating oil, fuel oil. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
Single Oil Filter (CBM1133-82) is designed to CBM1133-82. nominal size is DN50-200; pressure rating is 0.5 MPa; suitable media are lubricating oil, fuel oil. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

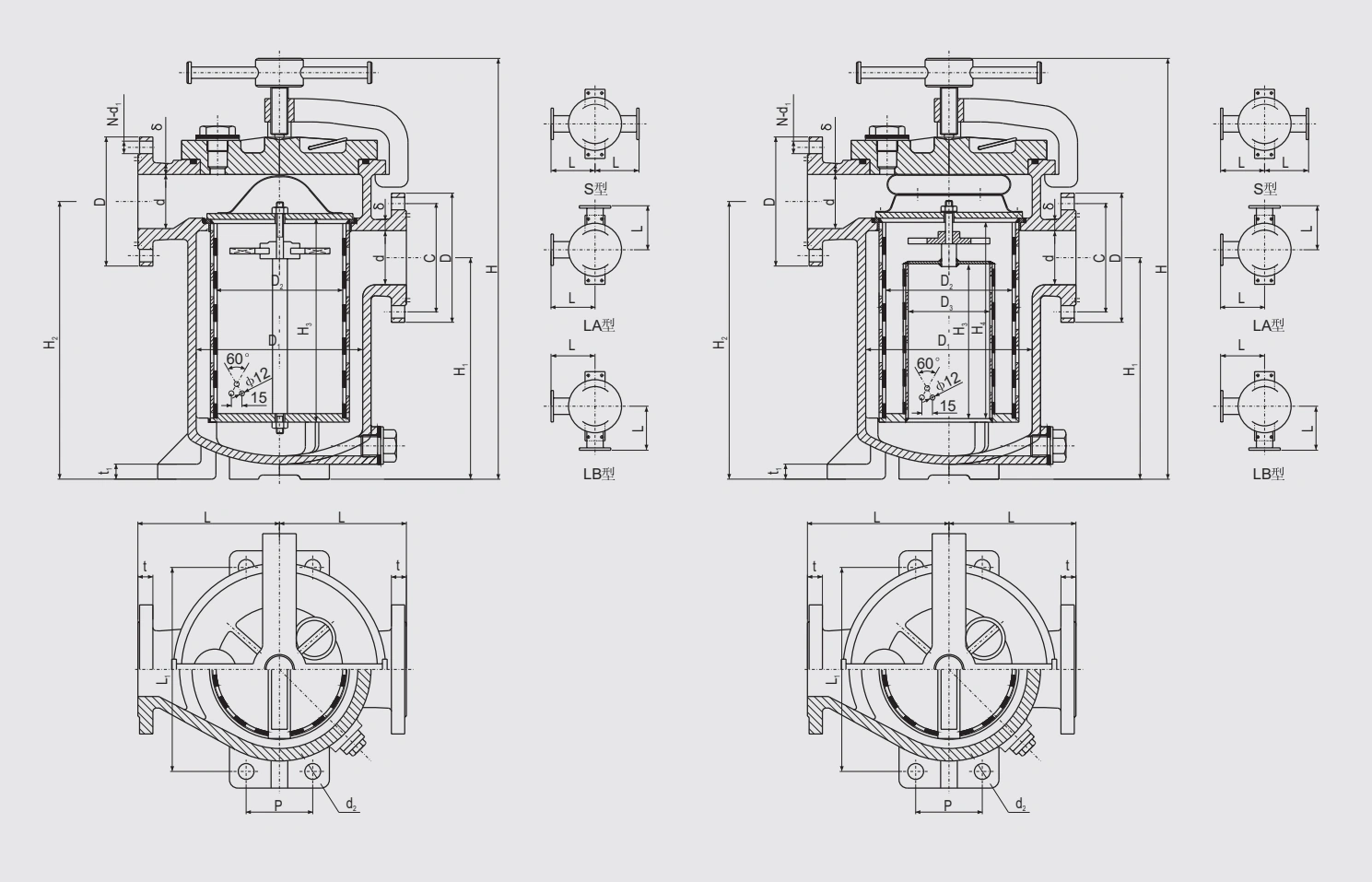

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | Single Oil Filter |
| Design standard | CBM1133-82 |
| Body material | Gray cast iron (HT200) |
| Item | Specification |
|---|---|
| Nominal pressure | 0.5 MPa |
| Nominal size | DN50-200 |
| Suitable media | lubricating oil, fuel oil |
| Part | Material |
|---|---|
| 本体, 盖 | Gray cast iron (HT200) |
| 浮筒 | Carbon steel (Q235-A) |
Confirm cleanliness and sealing compatibility for lubricating-oil service.
Confirm pressure, temperature and sealing material for fuel-oil service.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
