Standard and scope
Standard, product family and subcategory can be checked before inquiry.

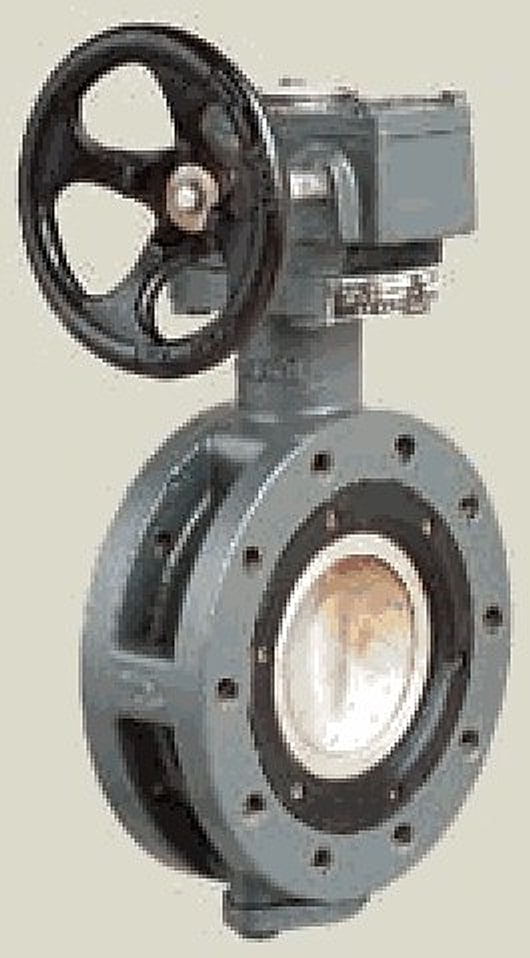

Marine Center-Pivoted Flanged Worm Manual Butterfly Valve (GB/T3036-94Fc) is designed to GB/T 3036-94Fc with flanged ends. nominal size is DN100-250; pressure rating is 1.0 MPa; suitable media are seawater, freshwater, air, up to 70°C crude oil, product oil. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
Marine Center-Pivoted Flanged Worm Manual Butterfly Valve (GB/T3036-94Fc) is designed to GB/T 3036-94Fc with flanged ends. nominal size is DN100-250; pressure rating is 1.0 MPa; suitable media are seawater, freshwater, air, up to 70°C crude oil, product oil. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

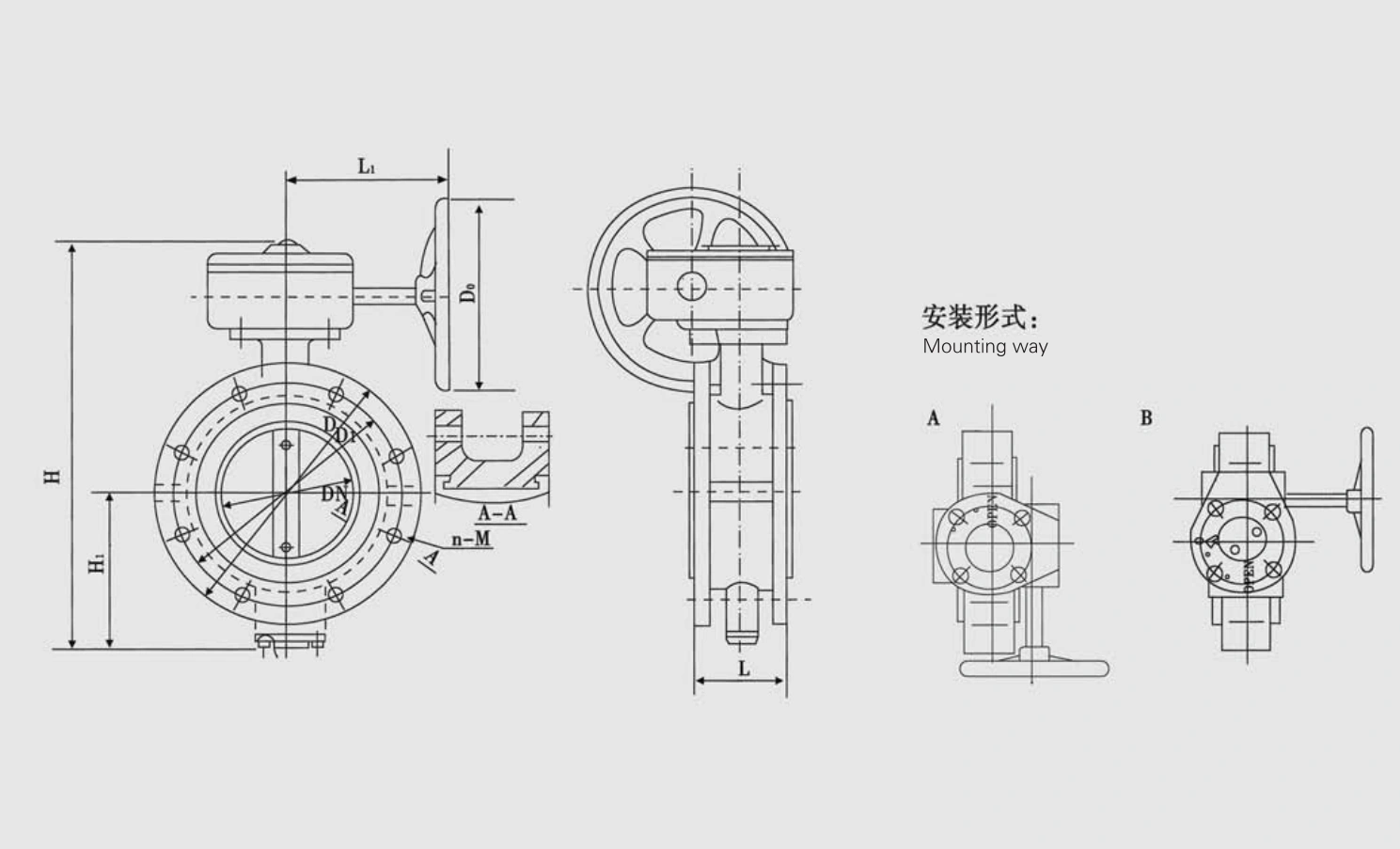

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | Marine Center-Pivoted Flanged Worm Manual Butterfly Valve |
| Design standard | GB/T 3036-94Fc |
| Body type | Type FC |
| End connection | Flanged |
| Item | Specification |
|---|---|
| Nominal pressure | 1.0 MPa |
| Nominal size | DN100-250 |
| Suitable media | seawater, freshwater, air, up to 70°C crude oil, product oil |
Send medium, temperature, pressure and installation position with your inquiry.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
