Standard and scope
Standard, product family and subcategory can be checked before inquiry.

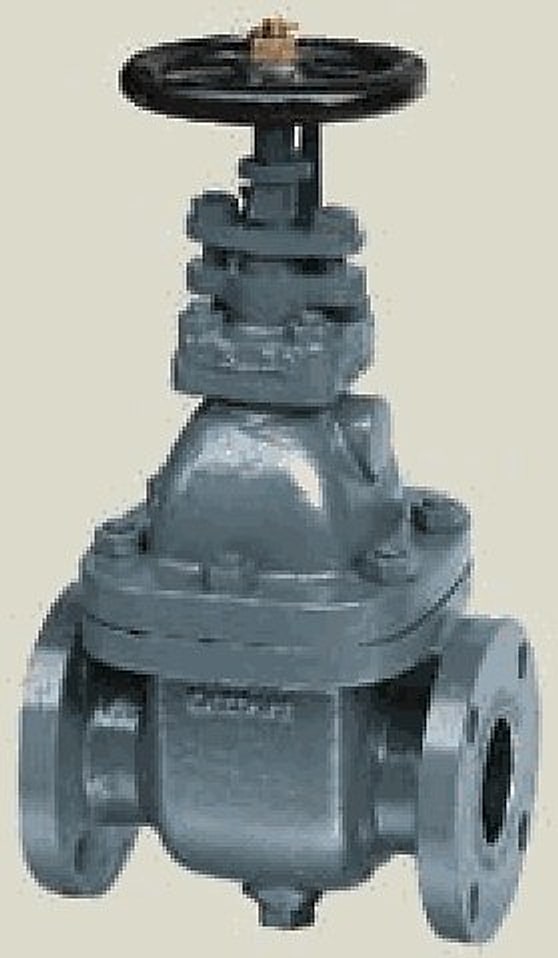

10K Marine Cast Iron Flanged Gate Valve (JIS F 7364) is designed to JISF7364 with flanged ends. nominal size is DN50-600; pressure rating is 10K; suitable media are gas, steam. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
10K Marine Cast Iron Flanged Gate Valve (JIS F 7364) is designed to JISF7364 with flanged ends. nominal size is DN50-600; pressure rating is 10K; suitable media are gas, steam. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

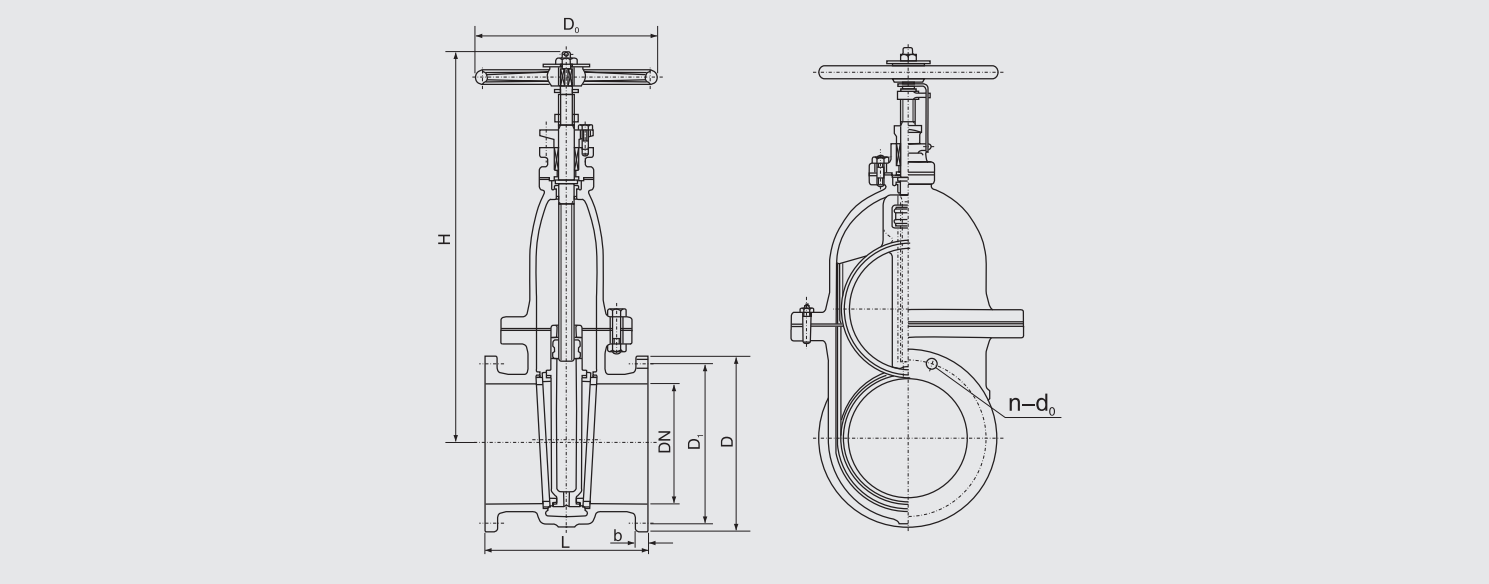

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | 10K Marine Cast Iron Flanged Gate Valve |
| Design standard | JISF7364 |
| Body material | gray cast iron (HT200) |
| End connection | Flanged |
| Item | Specification |
|---|---|
| Nominal pressure | 10K |
| Nominal size | DN50-600 |
| Suitable media | gas, steam |
| Part | Material |
|---|---|
| Body, Bonnet, Wedge gate | gray cast iron (HT200) |
Steam service is checked against temperature limits and pressure class.
Confirm gas compatibility and sealing arrangement before service.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
Short answers for procurement review. Technical data, project conditions, and document scope are confirmed before quotation.
It covers a 10K marine cast iron flanged gate valve designed to JIS F 7364. The listed service media are gas and steam, subject to project temperature, pressure, and sealing review.
10K is the listed JIS pressure-class callout. It is not a complete service-pressure statement and does not automatically equal a PN class; the applicable pressure-temperature basis is confirmed before quotation.
The listed nominal-size reference is DN50-600. The body, bonnet, and wedge gate are listed as HT200 gray cast iron; trim and sealing details are confirmed with the order.
No. The page lists gas and steam service only. Other media require a separate material, sealing, and application review before selection.
Send JIS F 7364, the K rating, DN or A/B size callout, material, flange facing and drilling, quantity, medium and maximum temperature, destination or delivery term, certificate and inspection requirements, and required date.
EN 10204 3.1 MTC, pressure-test records, PMI, NDT, classification-society documents, and customer-nominated inspection are confirmed by product and order. They are not automatically included in every shipment.
