Standard and scope
Standard, product family and subcategory can be checked before inquiry.

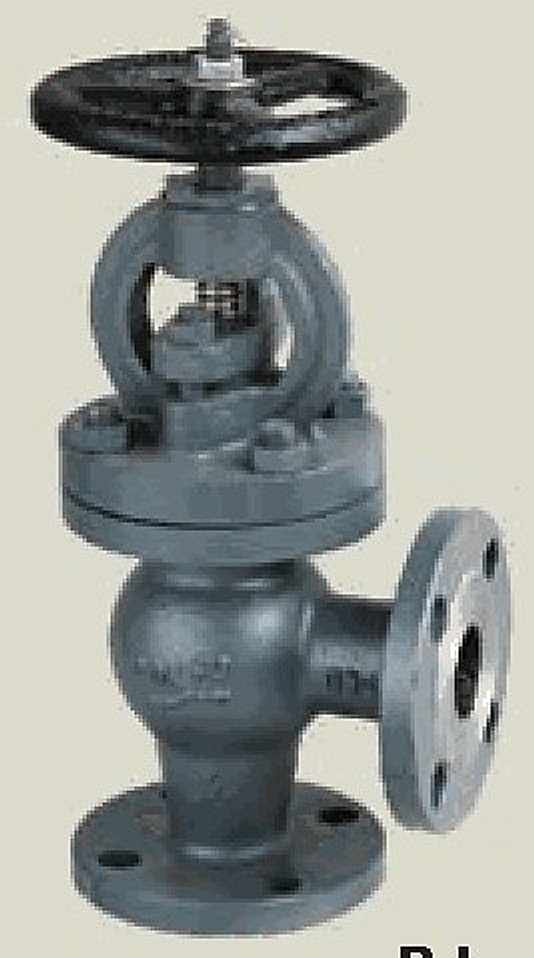

J Type Flanged Cast Steel 0.5MPa Angle Stop Valve (CB/T4001-2005) is designed to CB/T 4001-2005 with flanged ends. nominal size is DN250-300; pressure rating is 0.5 MPa; suitable media are oil and pulsating water, pulsating water; non-shock water up to 120°C. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
J Type Flanged Cast Steel 0.5MPa Angle Stop Valve (CB/T4001-2005) is designed to CB/T 4001-2005 with flanged ends. nominal size is DN250-300; pressure rating is 0.5 MPa; suitable media are oil and pulsating water, pulsating water; non-shock water up to 120°C. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.
Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | J Type Flanged Cast Steel 0.5MPa Angle Stop Valve |
| Design standard | CB/T 4001-2005 |
| Body material | cast steel (ZG230-450C) |
| End connection | Flanged |
| Item | Specification |
|---|---|
| Nominal pressure | 0.5 MPa |
| Nominal size | DN250-300 |
| Suitable media | oil and pulsating water, pulsating water; non-shock water up to 120°C |
| Part | Material |
|---|---|
| Body, Bonnet | cast steel (ZG230-450C) |
| Stem | HPb59-1 |
| Handwheel | gray cast iron (HT200) |
| Packing gland, Bonnet | cast bronze (ZCuSn5Pb5Zn5) |
| Stud | steel |
| Nut | steel |
Send medium, temperature, pressure and installation position with your inquiry.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
