J Type Flanged Cast Iron 0.5MPa Stop Valve (CB/T4007-2005) is designed to CB/T 4007-2005 with flanged ends. nominal size is DN50-400; pressure rating is 0.5 MPa; suitable media are steam up to 205°C; air, gas; oil and pulsating water, pulsating water; non-shock water up to 120°C. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
J Type Flanged Cast Iron 0.5MPa Stop Valve (CB/T4007-2005) is designed to CB/T 4007-2005 with flanged ends. nominal size is DN50-400; pressure rating is 0.5 MPa; suitable media are steam up to 205°C; air, gas; oil and pulsating water, pulsating water; non-shock water up to 120°C. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

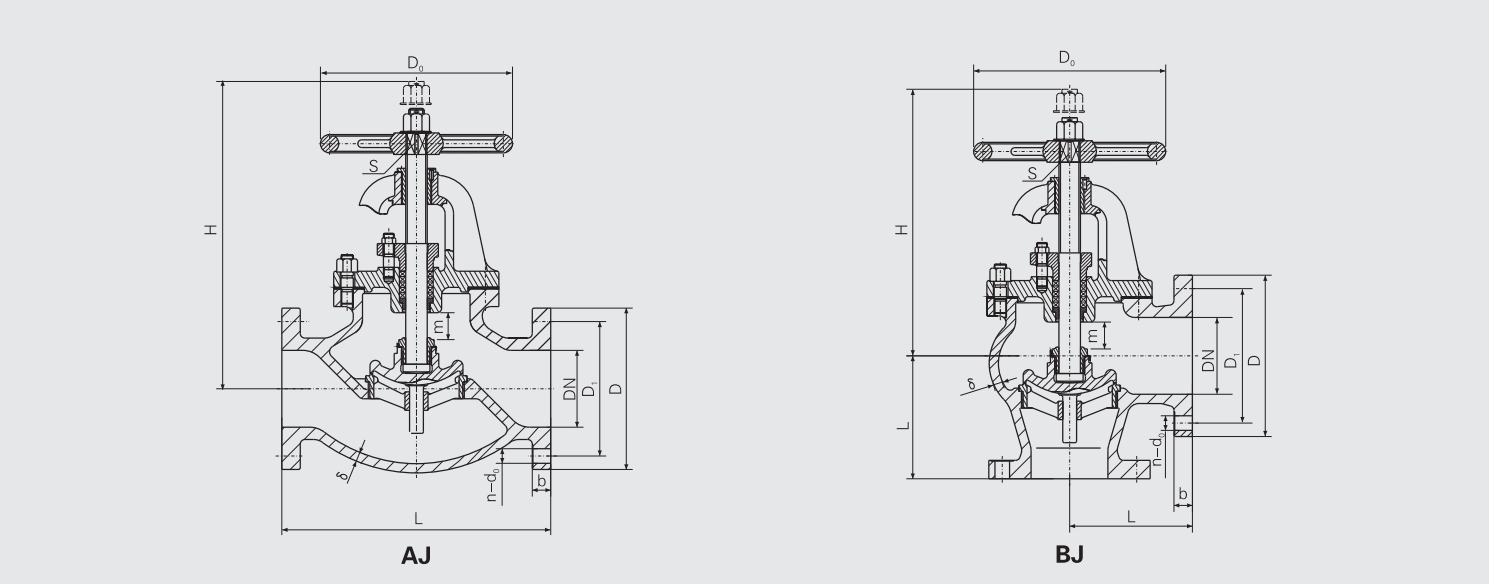

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | J Type Flanged Cast Iron 0.5MPa Stop Valve |
| Design standard | CB/T 4007-2005 |
| Body type | Type AJ, Type BJ |
| Body material | HT200 |
| End connection | Flanged |
| Item | Specification |
|---|---|
| Nominal pressure | 0.5 MPa |
| Nominal size | DN50-400 |
| Suitable media | steam up to 205°C; air, gas; oil and pulsating water, pulsating water; non-shock water up to 120°C |
| Part | Material |
|---|---|
| Body, Bonnet | HT200 |
| Handwheel | HT200 |
| Disc | ZCuSn5Pb5Zn5 |
| Stem | HPb59-1 |
| Packing gland | ZCuSn5Pb5Zn5 |
| Bonnet bush | HPb61-1 |
