J Type Flanged Cast Steel 4.0MPa Stop Valve (CB/T4006-2005) is designed to CB/T 4006-2005 with flanged ends. nominal size is DN32-150; pressure rating is 4.0 MPa; suitable media are steam up to 490°C; steam up to 475°C; steam up to 450°C; steam up to 425°C; steam up to 400°C; steam up to 350°C; steam up to 300°C; oil and pulsating water, pulsating water, air, gas. Confirm size, class, materials and documentation requirements with your inquiry.
Lead time and Incoterms confirmed by order; MTC 3.1 scope confirmed during RFQ
J Type Flanged Cast Steel 4.0MPa Stop Valve (CB/T4006-2005) is designed to CB/T 4006-2005 with flanged ends. nominal size is DN32-150; pressure rating is 4.0 MPa; suitable media are steam up to 490°C; steam up to 475°C; steam up to 450°C; steam up to 425°C; steam up to 400°C; steam up to 350°C; steam up to 300°C; oil and pulsating water, pulsating water, air, gas. Confirm size, class, materials and documentation requirements with your inquiry.
Standard, product family and subcategory can be checked before inquiry.

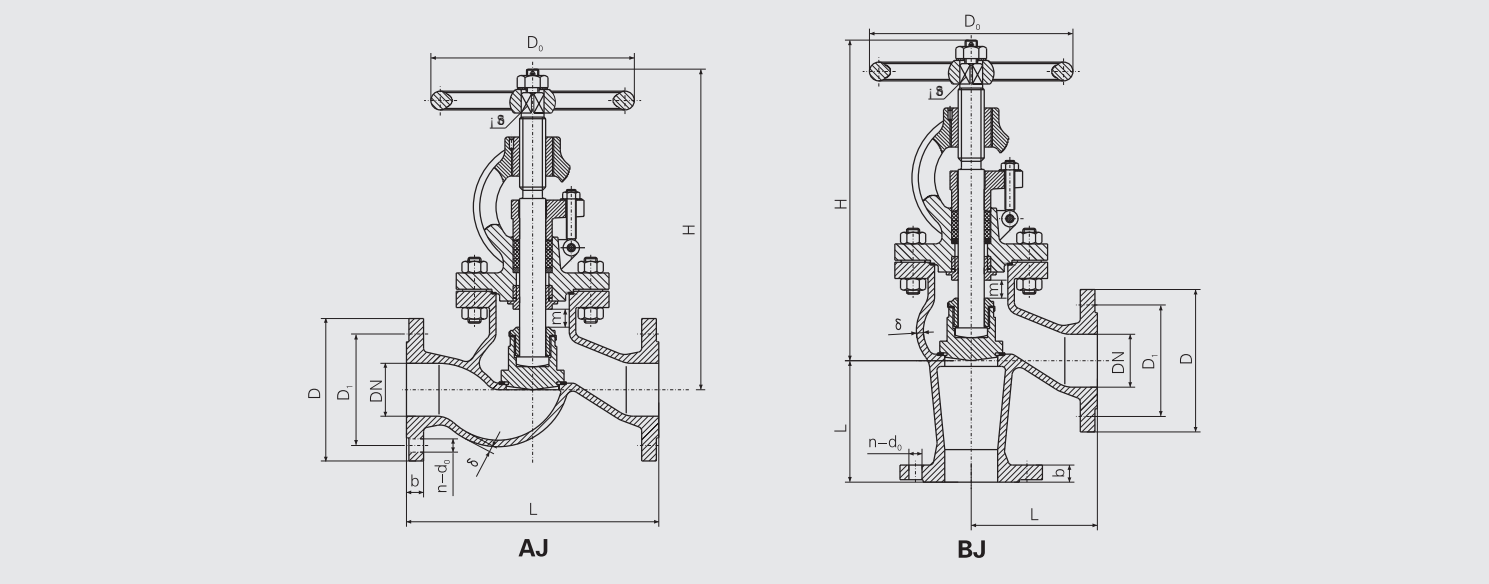

Check valve configuration, connection and installation orientation against the structure drawing.
MTC, pressure testing, records and supplementary inspection scope are confirmed by product and order requirement.
| Parameter | Value |
|---|---|
| Product | J Type Flanged Cast Steel 4.0MPa Stop Valve |
| Design standard | CB/T 4006-2005 |
| Body type | Type AJ, Type BJ |
| Body material | ZG260-520C |
| End connection | Flanged |
| Item | Specification |
|---|---|
| Nominal pressure | 4.0 MPa |
| Nominal size | DN32-150 |
| Suitable media | steam up to 490°C; steam up to 475°C; steam up to 450°C; steam up to 425°C; steam up to 400°C; steam up to 350°C; steam up to 300°C; oil and pulsating water, pulsating water, air, gas |
| Part | Material |
|---|---|
| Body, Bonnet | ZG260-520C |
| Handwheel | HT250 |
| Body | 2Cr13GB/TI220-1992 |
| Stem | 1Cr12 |
| Packing gland | ZCuSn5Pb5Zn5 |
Steam service is checked against temperature limits and pressure class.
Confirm working-pressure variation and sealing requirements for air service.
Confirm gas compatibility and sealing arrangement before service.
Export packaging and protection are planned by product type, transport mode and order requirements; palletizing can be arranged.
Lead time, Incoterms and payment terms are confirmed with the specification, quantity, certificate scope and production schedule.
MTC, test records, PMI, NDT and class-certificate scope are confirmed by product and order requirement.
Customer-nominated classification society or third-party inspection can be arranged when specified in the order.
